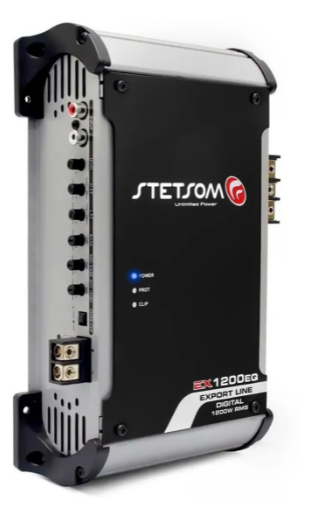

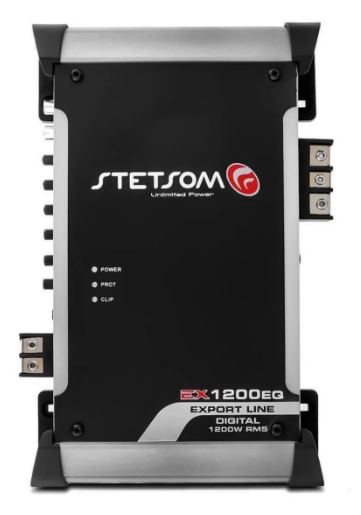

Stetsom Ex1200eq Module Amplifier 1200w Rms 2 Ohms

STETSOM EX1200EQ MODULE AMPLIFIER 1200W RMS 2 OHMS

Unleash Powerful Sound with Precision Control

The Stetsom EX1200EQ is a high-performance module amplifier designed for car audio enthusiasts who demand both power and precise sound control. Offering an impressive 1200W RMS at 2 ohms, this amplifier delivers deep, clean bass and crystal-clear highs, ensuring a rich listening experience across all music genres. Whether you're upgrading your vehicle’s sound system or installing a professional-grade setup, the EX1200EQ provides the power and features you need to maximize your audio potential.

Key Features:

• 1200W RMS at 2 Ohms: The Stetsom EX1200EQ is capable of delivering a robust 1200 watts RMS at 2 ohms, providing ample power for driving subwoofers, full-range speakers, and more. It ensures a consistent, distortion-free sound output, even at higher volumes.

• Compact and Efficient Design: Despite its powerful performance, the EX1200EQ is designed to be compact and lightweight, making it easy to integrate into your car audio system without taking up too much space. Its efficient heat dissipation system also ensures reliable performance under high load conditions.

• Built-In 5-Band Equalizer: The 5-band equalizer allows you to fine-tune the frequency response of your audio system, giving you complete control over the bass, midrange, and treble frequencies. Customize your sound to suit your personal preferences or match your vehicle’s acoustics for optimal audio quality.

• Crossover Controls: The EX1200EQ features adjustable crossover settings, including high-pass and low-pass filters, allowing you to ensure that each speaker or subwoofer in your system is receiving the right frequencies. This feature helps to prevent distortion and ensures that each component operates at its optimal performance.

• Stable at Low Impedances: This amplifier is stable at 2 ohms, ensuring that it can power high-demand audio components like subwoofers that require more power without compromising on performance or sound clarity.

• High and Low-Level Inputs: The EX1200EQ comes with high and low-level inputs, giving you flexibility to connect it to a wide range of audio systems, from factory-installed units to aftermarket head units with RCA outputs.

• Overload and Thermal Protection: With built-in protection circuits, including overload and thermal protection, the EX1200EQ ensures safe operation by preventing damage to the amplifier in case of overheating or excessive power demands.

Specifications:

• RMS Power Output: 1200W RMS at 2 ohms
• Power Supply: 12V DC (automotive power system)
• Frequency Response: 10 Hz – 25 kHz
• Total Harmonic Distortion (THD): < 0.1%
• Signal-to-Noise Ratio (SNR): >90 dB
• Input Sensitivity: High-level: 200 mV – 2V, Low-level: 0.2V – 6V
• Crossover: Adjustable high-pass and low-pass filters
• Equalizer: 5-band equalizer for bass, midrange, and treble adjustments
• Dimensions: 10” x 6” x 2.5” (255mm x 152mm x 63mm)
• Weight: 1.2 kg (2.6 lbs)
• Protection: Overload, thermal, and short-circuit protection
• Cooling: Integrated cooling system for long-lasting performance

Why Choose the Stetsom EX1200EQ?

• Powerful Performance: With 1200W RMS at 2 ohms, the Stetsom EX1200EQ is built to deliver strong, consistent power, ensuring that your car audio system gets the boost it needs for deep bass and clear treble at any volume.

• Enhanced Sound Control: The 5-band equalizer and adjustable crossover settings give you precise control over the sound output, allowing you to adjust the bass, midrange, and treble to your liking and prevent distortion from overpowered frequencies.

• Versatility: With high and low-level inputs, this amplifier can be easily integrated into various audio setups, whether you're working with a factory-installed stereo or a custom aftermarket system.

• Reliability: The overload and thermal protection circuits ensure that the amplifier runs smoothly and efficiently, even under demanding conditions, providing long-term reliability for your sound system.

• Space-Saving Design: Despite its powerful output, the EX1200EQ has a compact design, making it perfect for installations where space is limited, without sacrificing performance.

Applications:

• Car Audio Systems: Ideal for powering subwoofers and other high-demand audio components in custom car audio systems. With its high RMS power and control features, it’s perfect for enthusiasts looking for powerful, distortion-free sound.
• Upgraded Factory Systems: Perfect for anyone looking to add a high-performance amplifier to an existing factory sound system without compromising on sound quality or power.
• Professional Installations: The EX1200EQ is perfect for professional audio installations, providing both power and flexibility for complex setups.
